EASY TO INSTALL AND SET UP

MAIN FEATURES

• Spare parts
• Pressure 5
• Water flow 0.12 l/min
• Drums
• 21 volts
• 2.5 amperes

The Geyser Nebulizer E-25 MI 21 V is the ideal solution for those who want to get rid of unwanted guests such as mosquitoes, pigeons and bad smells.

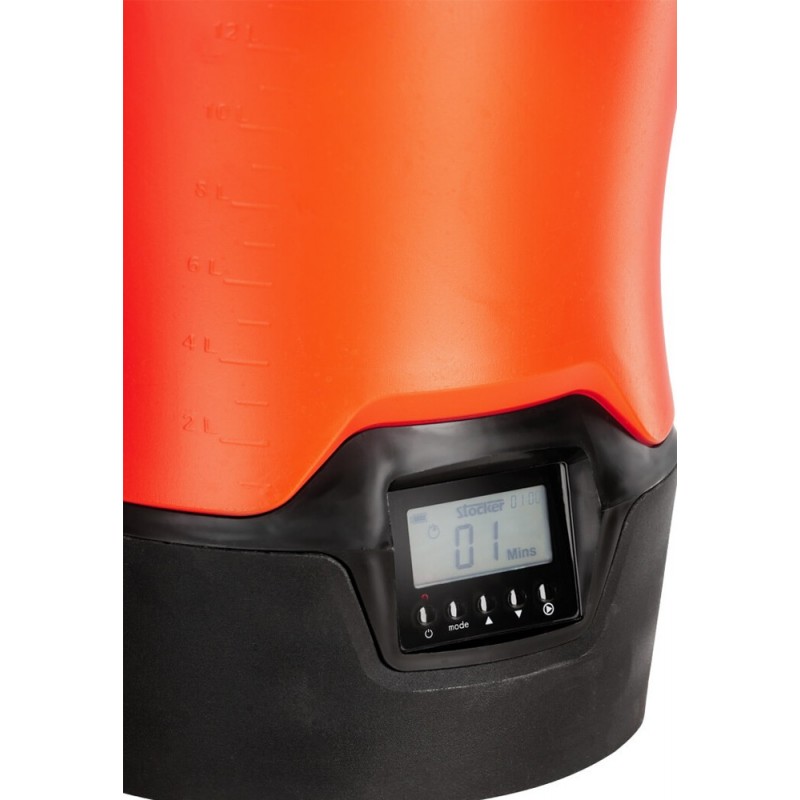

The nebulizer works automatically and safely: the intuitive display with clock on the front of the machine allows you to set the frequency, power and duration of the cycles.
The 30-second audible timer signals when the machine starts, thus giving you the opportunity to leave before the ultra-fine nebulization treatment.
Compared to other nebulizers, it offers the possibility of also setting the starting time of the cycles, thus allowing greater flexibility.

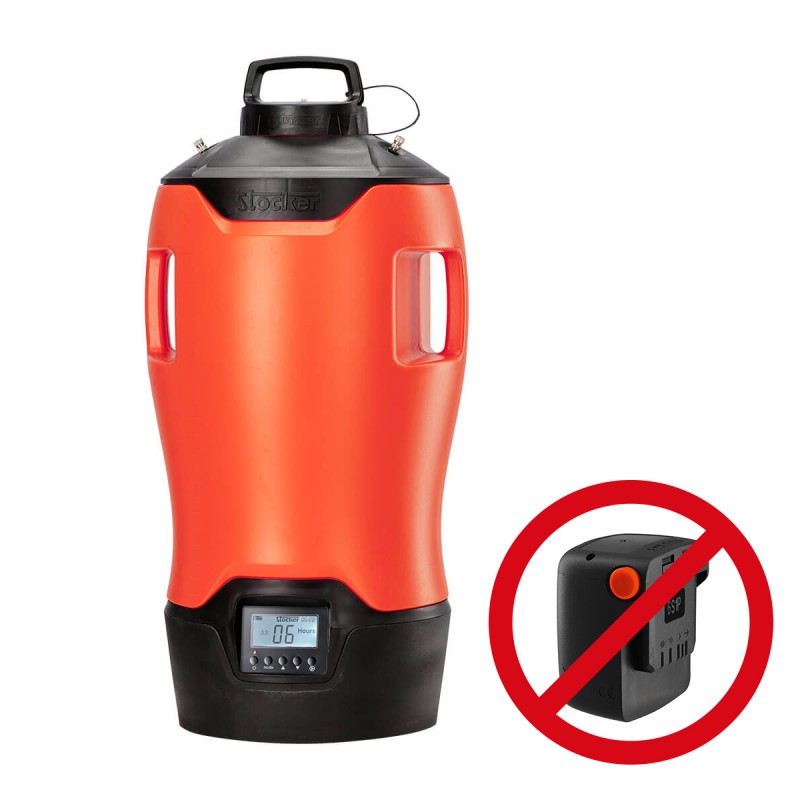

The 25 liter nebulizer is compatible with 2.6 Ah and 4 Ah batteries from the 21 V power line . The battery is not included , so you can independently choose the best one based on your needs, or use the one you already have available.

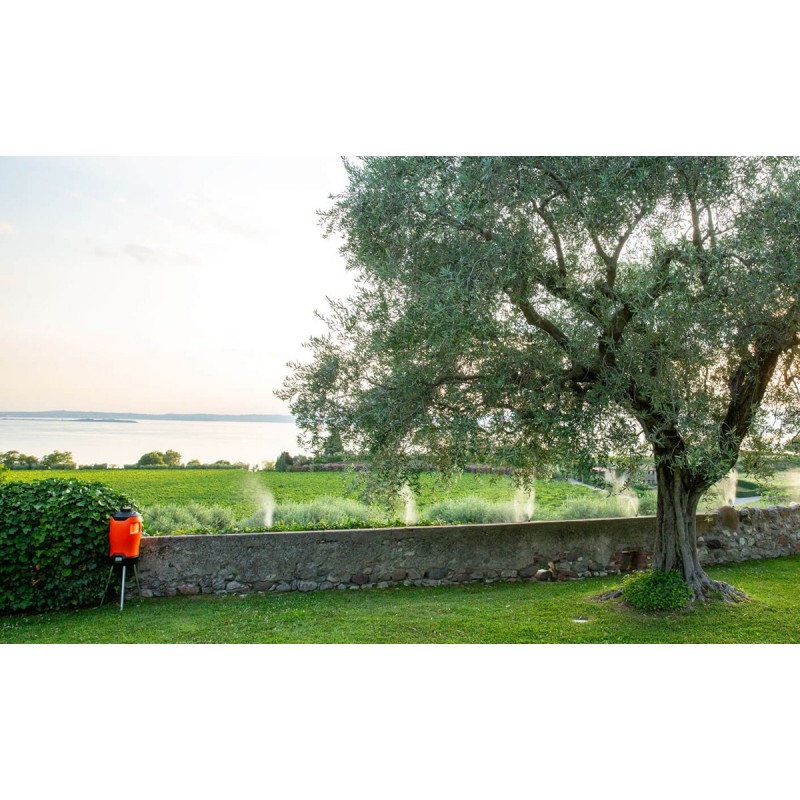

Thanks to the battery power supply, it is possible to position the Geyser Nebulizer E-25 MI 21 V easily in the strategic points you choose, also thanks to the practical aluminum tripod.

The engine allows you to manage 2 power levels and high operating pressure.
Choosing the level that best suits your needs to save battery.
The autonomy varies depending on the battery used.

The recommended battery for this product is 2.6 Ah / 21.6 V.
This battery allows you to work continuously for up to approximately 180 minutes on power level 2.

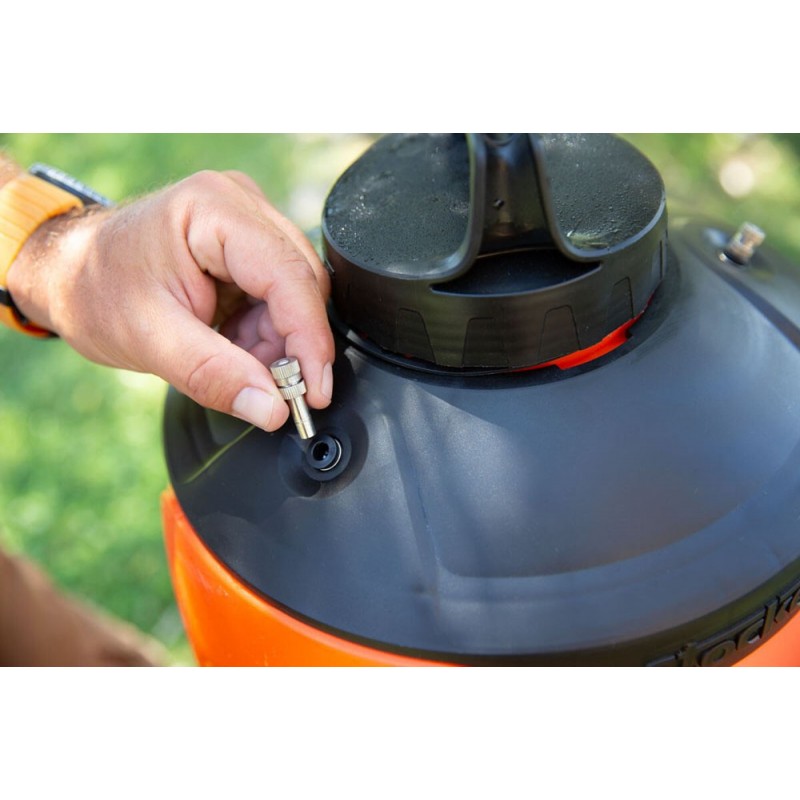

The three ultra-fine nebulization nozzles allow for a homogeneous 360° distribution of the product, for greater effectiveness of the treatments.
The special FPM gaskets make it suitable even for the use of the most aggressive products.
The innovative internal nozzle allows optimal mixing of any product used.

The nebulizer can also be used for the sanitization of internal environments and for the nebulization of other liquids.
- Tank capacity: 25 litres
- Max. working pressure: 5 bar
- Water flow: 0.12 liters per minute
- 21 V Li-Ion battery
- Magma System 21V compatibility: yes

INSTALLATION AND USE

Every intervention to free ourselves from the nuisance of unwanted guests must be included in an integrated strategy based on the use of all available methods, to maximize effectiveness and at the same time reduce costs.

1) MEASURE YOUR GARDEN

Measure the perimeter of your garden and define the area to be protected. Look for a convenient place to place the geyser and draw a path that covers every side of the space you want to defend from unwanted guests. Remember that you will have to position the nozzles 2.5 m apart from each other and that you can use the fittings to create non-linear path angles. Finally, based on your system project, you can choose the geyser that best suits your needs.

2) CHOOSE THE NEBULIZER

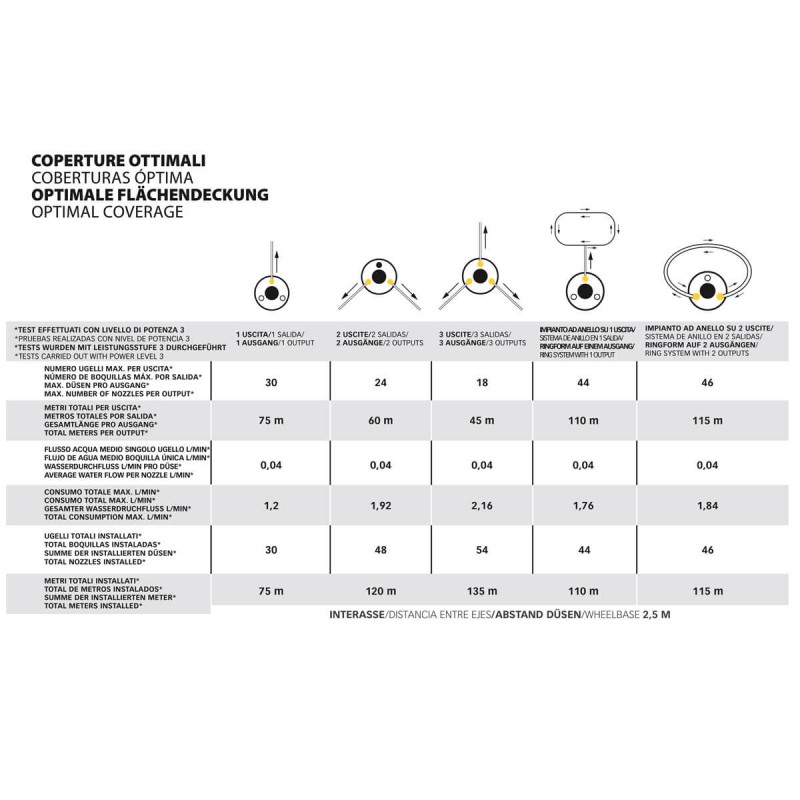

If you have just measured your garden, the time has come to choose the best geyser for you. You will have to choose it based on the length of the perimeter to be covered and the number of misting nozzles. For small systems choose the 2 liter Geyser or the 4 liter Geyser. For larger areas you can choose the 12 liters, for systems under 100 meters, or the 25 liters for longer systems. In general, consider that you will have to place a misting nozzle every 2.5 m and each nozzle consumes 0.04 liters per minute.

Example of consumption calculation
125 meter perimeter system created using a 100 m pipe kit and a 25 m pipe kit
To calculate the number of nozzles needed we divide the length of the system in meters by 2.5. In our case 125/2.5 for a total of 50 nozzles.
We multiply the number of nozzles by the consumption per minute of each nozzle (0.04 L). We get 50 x 0.04 = 2 liters per minute.
By spraying one minute a day, a 12 liter geyser will run out in 6 days while a 25 liter geyser will run out in 12 days.

3) DESIGN YOUR SYSTEM

At this point you are ready to choose the components that will form your system. You can choose whether to purchase a kit complete with everything you need or choose every single component that will make up your system for maximum customization. In this case you will start from the choice of pipe, based on the length of the perimeter and the shape of your garden. You will need the corner fittings to give shape to your system, the T-fittings to insert the nozzles or divide the path of the pipes and finally the nozzles for nebulising the anti-mosquito liquids. The extension rods allow you to spray at the right height in places where there are no holds available. Clamps and hose clips will help keep your system tidy.

4) CHOOSE MOSQUITO-RESISTANT LIQUIDS

Specially designed for nebulization, the line of liquids allows you to implement a strategy to get rid of and remove mosquitoes from your green space. Based on your needs, you can choose between a PERFORMACE strategy, for optimal results, and a GREEN strategy, which is more attentive to the environment.

LARVICIDE: With a barrier function, the action of the drops of the plant-based larvicide interrupts the development of the larvae in manholes, stagnations etc...
ETOKRAFT: Residual mosquito repellent and resistant to sunlight, must be diluted 8 ml per litre.
FLORIFENS: Mosquito deterrent with essential oils of natural origin, diluted 50 ml per litre.
NEBUZAN: Mosquito repellent that contains plant-derived geraniol.

PERFORMANCE STRATEGY
The combination of larvicide and two liquids designed to fight mosquitoes through ultra-fine nebulization allows effective treatments to be carried out at dawn and dusk.
1)LARVICIDE > 2)ETOKRAFT > 3)FLORIFENS

GREEN STRATEGY
The combination of these liquids allows you to carry out effective anti-mosquito treatments at dawn and dusk using a green strategy.
1)LARVICIDE > 2)NEBUZAN > 3)FLORIFENS

NB: Recommended intervals for medium-low mosquito densities to be adjusted according to needs. Repeat the step 2 + step 3 cycle in the event of a new mosquito infestation.
